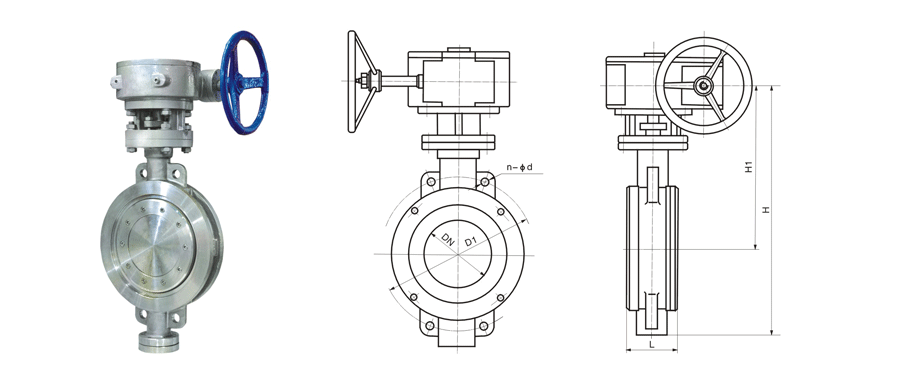

產品型號 Type |
公稱通經 DN |
L | PN1.0MPa | PN1.6MPa | PN2.5MPa | H | H1 | |||
|---|---|---|---|---|---|---|---|---|---|---|
| D1 | n-d | D1 | N-d | D1 | N-d | |||||
| D73H D373H D673H D973H 10C 16C 25 10P 16P 25P 10R 16R 25R |
50 | 43 | 125 | 4-18 | 125 | 4-18 | 125 | 4-18 | 340 | 255 |
| 65 | 46 | 145 | 4-18 | 145 | 4-18 | 145 | 4-18 | 370 | 280 | |
| 80 | 49 | 160 | 4-18 | 160 | 4-18 | 160 | 4-18 | 385 | 285 | |
| 100 | 56 | 180 | 4-18 | 180 | 4-18 | 190 | 4-22 | 430 | 310 | |
| 125 | 64 | 210 | 4-18 | 210 | 4-18 | 220 | 4-22 | 440 | 310 | |
| 150 | 70 | 240 | 4-23 | 240 | 4-22 | 250 | 4-26 | 475 | 315 | |
| 200 | 71 | 295 | 4-23 | 295 | 4-22 | 310 | 4-26 | 590 | 380 | |
| 250 | 76 | 350 | 4-23 | 355 | 4-26 | 370 | 4-30 | 710 | 460 | |
| 300 | 83 | 400 | 4-23 | 410 | 4-26 | 430 | 4-30 | 725 | 475 | |
| 350 | 92 | 460 | 4-23 | 470 | 4-26 | 490 | 4-26 | 830 | 510 | |
| 400 | 102 | 515 | 4-25 | 525 | 4-30 | 550 | 4-33 | 900 | 550 | |
| 450 | 114 | 565 | 4-25 | 585 | 4-30 | 600 | 4-36 | 970 | 590 | |
| 500 | 127 | 620 | 4-25 | 650 | 4-33 | 660 | 4-36 | 1030 | 610 | |
| 600 | 154 | 725 | 4-30 | 770 | 4-36 | 770 | 4-36 | 1150 | 660 | |
| 700 | 165 | 840 | 4-30 | 840 | 4-36 | 875 | 4-39 | 1220 | 730 | |
| 800 | 190 | 950 | 4-34 | 950 | 4-39 | 990 | 4-42 | 1300 | 810 | |
| 900 | 203 | 1050 | 4-34 | 1050 | 4-39 | 1090 | 4-48 | 1480 | 930 | |
| 1000 | 216 | 1160 | 4-34 | 1170 | 4-42 | 1210 | 4-56 | 1600 | 1020 | |
| 1200 | 254 | 1280 | 4-41 | 1390 | 4-52 | - | - | 1902 | 1050 | |
